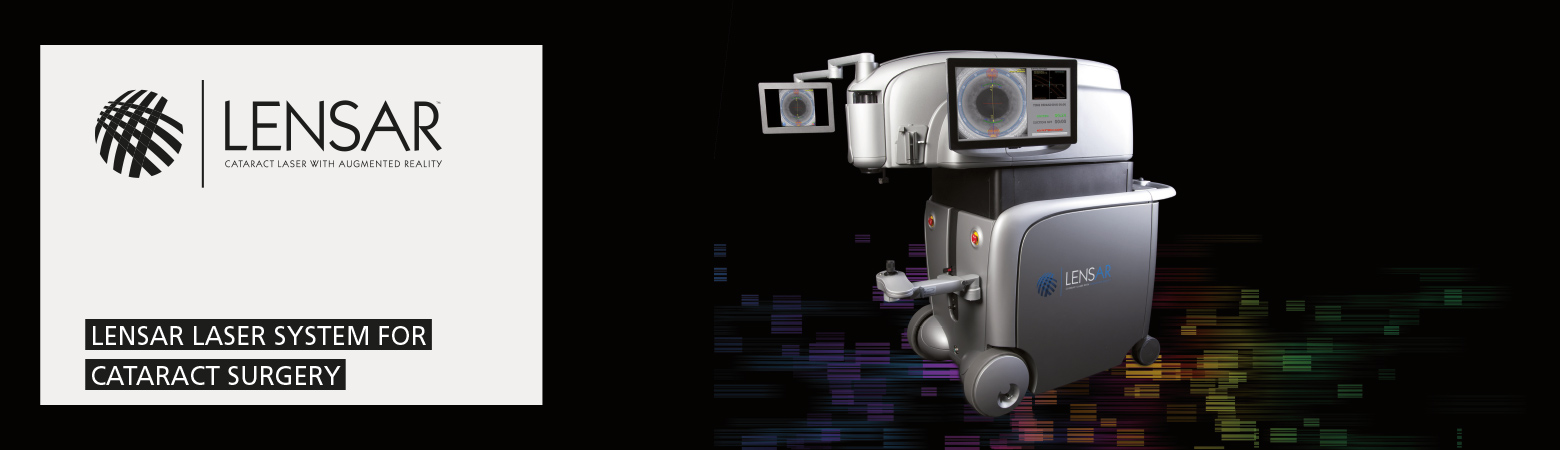

LENSAR™ laser system: The optimum for your
cataract surgery

The system is very variable and adapts well to different OR environments and conditions. It can be used directly in the operating theatre to perform complete treatments in a room or in an anteroom of the operating theatre.

Thanks to the system’s unique design and dimensions with its retractable laser console and motorized substructure, the doctor can freely choose his own position in relation to the patient's head. The system requires only minimal movement of the patient, because the laser moves to the patient and not the patient to the laser.

The doctor's excellent viewing angle of the patient's eye enables perfect observation of the treatment for the surgeon and the surgical staff. The two-part system is easy for the doctor to operate and dock. The suction ring is positioned on the sclera and leaves the cornea untouched. Subsequently, the laser console and servo-controlled docking system is moved by the doctor using the joystick. With the help of an aiming system, the eye is safely docked, imaging is started and treatment can begin.

From this image information, all surfaces are automatically localized, measured and biometrics are generated. Image processing uses the Ray Tracing principle to automatically create a true 3D reconstruction of the frontal eye section and then automatically generates the best treatment pattern for each individual eye.

CSI is short for “Confocal Structured Illumination”. The beam paths for the laser and scan optics are identical to ensure that the system uses the same optical path. This makes it possible to work with the highest precision and also to align the laser beam exactly at the spot that was previously scanned by the scanner.

This self-developed system varies the scanning rates, creating four different lighting zones to achieve high quality images of surfaces with different reflective properties. These zones are: the central area of the cornea, the outer corneal margin with limbus (taking into account the strong reflection of the iris), the frontal lens surface and the posterior lens surface while considering the different degrees of lens opacity.

That way, the system is able to produce the highest quality images with the greatest possible depth of field and allows the image processing software to automatically generate the 3D reconstruction and the necessary treatment patterns for the entire treatment.

For more detailed information on 3D CSI, please visit the LENSAR website.

The treatment algorithms were optimized for each degree of cataract and the system fragments the lens with maximum efficiency. This leads to a significant reduction or even elimination of the required ultrasonic energy to complete the cataract procedure.

The 3D-CSI diagnostic system significantly improves the efficiency and safety of the procedure by automatically adjusting for any inclination and de-centreing of the eye lens that may be anatomical or treatment-related.

LENSAR has focused on astigmatism in its system upgrade as the overwhelming majority of all cataract patients suffer from astigmatism - a condition that is often difficult to treat and can have a major impact on the visual results. With Streamline IV you can deliver the outstanding surgical results your patients want.

Efficient Design
Automation, thoughtful ergonomics, faster laser treatment times¹⁾, and corneal incision-only mode allow for maximum surgical efficiency.

Simplified Procedures
Cataract density imaging, automatic customized fragmentation patterns, customizable surgeon preferences, and additional automation simplify the laser procedure.

Superior Imaging with Augmented Reality
An unprecedented amount of biometric data and accurate 3-D reconstruction of each eye’s anatomy provide the ultimate in laser precision, confidence, and patient safety.

NEW IntelliAxis Refractive Capsulorhexis™

• Biomechanically stable and permanent capsular marks enable you to precisely mark the capsule on the steep axis to guide toric IOL alignment, both intra- and post-op
• IntelliAxis-C steep axis corneal marking also available

Arcuate Incision Planning

• Allows for convenient, one-touch arcuate incision planning based on the surgeon's most current pre-programmed nomogram data
• Adds a level of precision and eliminates possible transcription errors by using individual patient biometric measurements and other factors defined by the surgeon to automatically determine arcuate incision depth, location, and length

Surgically Induced Astigmatism (SIA)

• Automatically modifies incision parameters to account for SIA and residual astigmatism entries

Toric IOL Power Conversions

• Enhanced toric IOL selector includes manufacturer-defined toric IOL power calculated at the corneal plane to account for SIA
• Offers surgeons more precision for reducing residual corneal astigmatism treatment planning

Intelligent Incisions

• Employs localized imaging to monitor the position of the cornea immediately before each incision, to ensure the precise location of each incision
• Streamline facilitates creation of incisions that are easier to open, by detecting opaque corneas or obstructed incision placement

¹⁾ Wireless integration available using the Cassini Corneal Shape Analyzer and Oculus Pentacam HR and AXL. USB integration available with Nidek OPD III.
